Bought in the ctrlX Store, Running on Windows

This path applies to LumiScan software that you bought in the Bosch Rexroth ctrlX Store and run on Windows 11: engineering apps (for example LumiScan Annotation Framework) as well as runtimes (for example LumiScan VGR or a vision app on a Windows IPC).

Two things are needed. They have different jobs:

Job Renewal

Licence in ctrlX WORKS

Entitles you to use the app.

As agreed with Bosch Rexroth.

LumiScan Key

Protects the software against reverse engineering. It does not carry the licence.

None. It is updated only when you add a new LumiScan product.

What you need

  • The licence for the app, bought in the ctrlX Store and activated in ctrlX WORKS. Follow the Bosch Rexroth documentation for ctrlX WORKS.

  • One LumiScan Key for each Windows PC on which the software runs at the same time. You buy it in the Bosch Rexroth store; it is delivered with a basic setup. Keys can be exchanged between PCs (see One key per device).

  • CodeMeter Runtime 9.00 or later (see Installing CodeMeter Runtime).

Setting up

  1. Install CodeMeter Runtime and connect the LumiScan Key (see Installing CodeMeter Runtime).

  2. Activate the app licence in ctrlX WORKS.

  3. Install and start the LumiScan app.

Adding another LumiScan product

When you buy a further LumiScan product in the ctrlX Store for Windows 11, your LumiScan Key must be enabled for it once:

  1. Create a licence request from your LumiScan Key.

  2. Send it to licenses@hdvisionsystems.com, together with your ctrlX Store order number and the product you added.

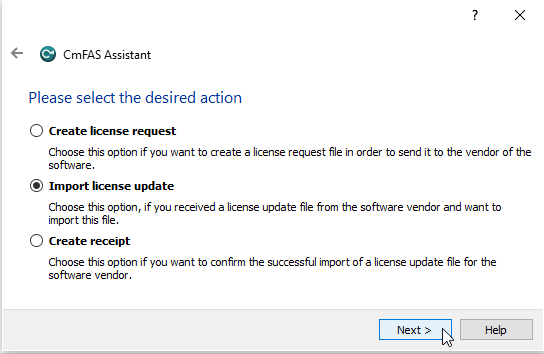

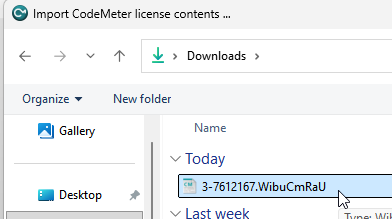

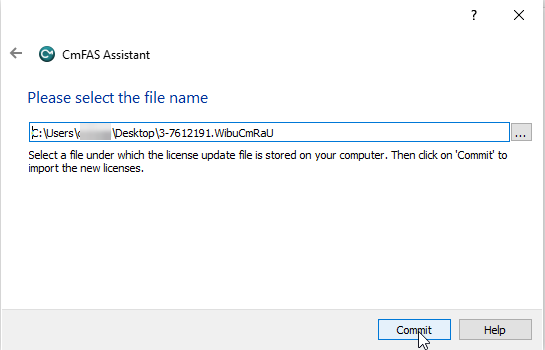

  3. Import the licence update that you receive from HD Vision Systems.

There is no annual update of the LumiScan Key on this path.
